JET Strongarm 033012 – (SACS106) 10 Metric Ton Single Acting Cylinder – Super Heavy Duty

New

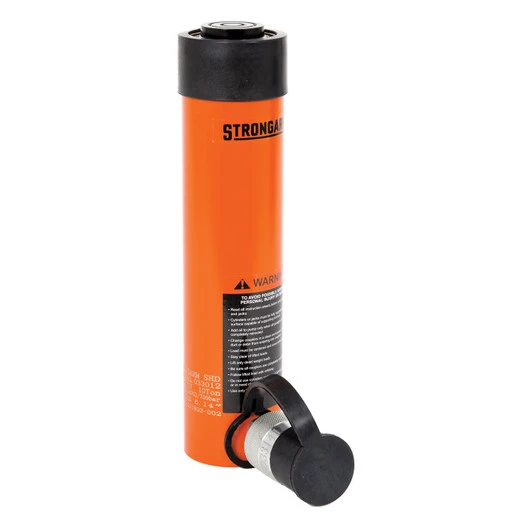

JET Strongarm 033012 - (SACS106) 10 Metric Ton Single Acting Cylinder - Super Heavy Duty
JET Strongarm 033012 - (SACS106) 10 Metric Ton Single Acting Cylinder - Super Heavy Duty - Image 2

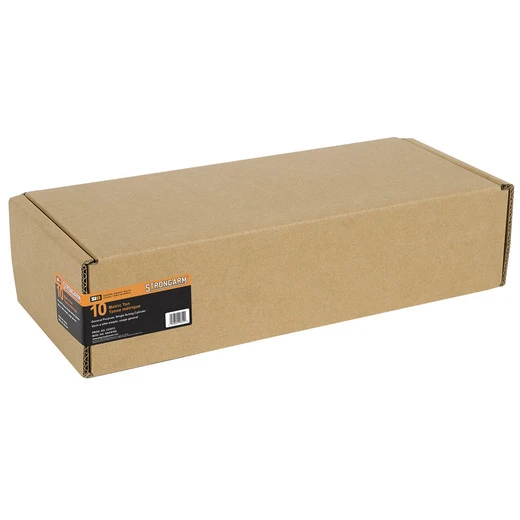

JET Strongarm 033012 - (SACS106) 10 Metric Ton Single Acting Cylinder - Super Heavy Duty -Deals Federated Tool Store 033012 Pkg hr 60222.1560407243.520.520

Original price was: $384.00.Current price is: $96.99.

Buy Now
SKU: JET033012 Categories: , , , Tag:
  • Streamlined service, designed for your convenience.
  • Free Shipping, Quality Goods
  • Prompt service, every time.
  • Your needs, our top priority.
  • Complies with ANSI specifications
  • High strength alloy steel for safety and durability
  • Inside cylinder treated to enhance durability
  • Features collar threads, plunger threads and base mounting holes for optional fixture attachment
  • Heavy duty plunger spring return
  • High quality 3/8″-18 NPT quick coupling
  • Baked enamel finish for increased corrosion resistance
  • Cylinder Capacity @ 700 Bar (10,000 PSI) : 10/11 Metric tons/US tons
  • Stroke : 6.14″
  • Cylinder Effective Area : 2.25 in²
  • Oil Capacity : 13,8 in³
  • Collapsed Height (A) : 9.72″
  • Extended Height (B) : 15.87″
  • Collar Thread (C) : 2-1/4″ – 14
  • Collar Thread Length (X) : 1.02″
  • Outside Diameter (D) : 2.25″
  • Piston Rod Diameter (F) : 1.50″
  • Piston Internal Thread (O) : 1″-8UNC
  • Piston Thread Length (P) : 0.75″
  • Base Fixturing Holes – Bolt Circle U : 1.54″
  • Base Fixturing Holes – Thread V : 5/16″-18UNC
  • Base Fixturing Holes – Thread Depth Z : 0.47″
