Jet 409007 – (AR316SD) 3/16″ Air Riveter – Super Heavy Duty

New

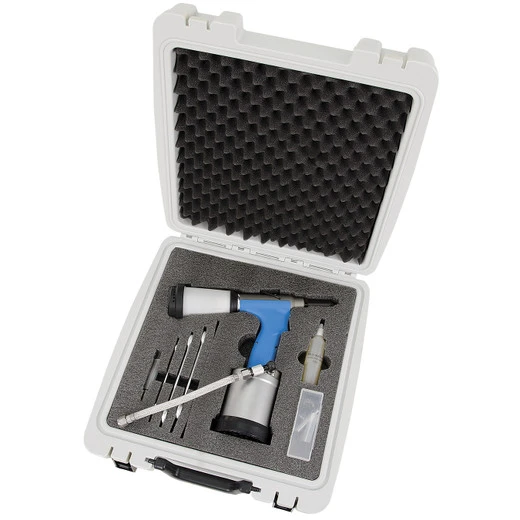

Jet 409007 - (AR316SD) 3/16" Air Riveter – Super Heavy Duty
Jet 409007 - (AR316SD) 3/16" Air Riveter – Super Heavy Duty - Image 2
Jet 409007 - (AR316SD) 3/16" Air Riveter – Super Heavy Duty -Deals Federated Tool Store 409007 case hr 93691.1560370220.520.520

Original price was: $395.00.Current price is: $95.99.

Buy Now
SKU: JET409007 Categories: , , , Tag:
  • Streamlined service, designed for your convenience.
  • Free Shipping, Quality Goods
  • Prompt service, every time.
  • Your needs, our top priority.
  • New production quality air riveter delivers a powerful pulling load of 2,600 lbs
  • Can be used on aluminum, steel and stainless steel rivets up to 3/16″
  • Specific components manufactured with high cost, super precise CNC deep hole drilling processes for extreme accuracy and tolerance
  • Longer 20mm stroke sets rivets in one hit, increasing efficiency
  • Integrated vacuum/exhaust system with a convenient adjustable switch allows operator to adjust mandrel retention and collection
  • Designed with integrated spring and air return system for fast, reliable cycles
  • Japanese NOK rubber gasket for longest tool life
  • Specially designed “quick opening” collection bottle eliminates the need to remove bottle when emptying
  • Includes 4 sizes of nose pieces for a wide range of uses
  • Designed for production and heavy duty power riveting applications
  • Rivet Capacity : 3/16″
  • Stroke : 0.78″ (20 mm)
  • Pull Force : 2,600 lb
  • Average Air Consumption : 5.5 cfm
  • Min. Hose Size : 3/8″
  • Air Inlet (NPT) : 1/4″
  • Nosepiece : 3/32″ (2.4 mm), 1/8″ (3.2 mm), 5/32″ (4.0 mm), 3/16″ (4.8 mm)
  • Vibration: 2.5 m/s²
  • Vibration: 75 dBA
