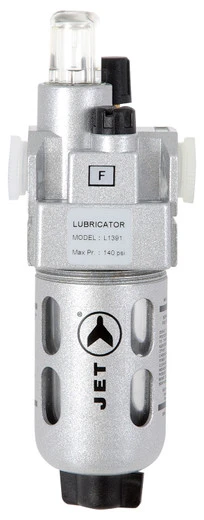

Jet 408833 – (ALM14) Air Lubricator 1/4″ NPT – Miniature

New
Jet 408833 - (ALM14) Air Lubricator 1/4" NPT - Miniature

Original price was: $65.99.Current price is: $46.19.

Buy Now
SKU: JET408833 Categories: , , , Tag:
  • Streamlined service, designed for your convenience.
  • Free Shipping, Quality Goods
  • Prompt service, every time.
  • Your needs, our top priority.
  • Used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow
  • Lubricators are Fog/ Micro Mist type, up to 50′ pipe runs
  • Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
  • The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
  • Polycarbonate bowl with threaded steel bowl guard
  • Sintered Bronze Filtering element
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Conforms to ISO 6301-1
  • Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
  • Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
  • Note: Designed for best performance with 32 grade oil
  • Max. Flow : 48 cfm (1,350 LPM)
  • Port Size : 1/4″
  • Bowl Size (Lubricator) : 0.68 oz (20 ml)
  • Height : 5.31″ (135 mm)
  • Width : 1.57″ (40 mm)
