Name: Unique, Meilun Meihuan Jet 408801 - (AFRLCM14) 2 PC Air Filter, Regulator And Lubricator 1/4" NPT - Miniature at Federatedtoolca.com from CA.
SKU: JET408801
Price: 99.99 CAD
Availability: InStock

New

Jet 408801 - (AFRLCM14) 2 PC Air Filter, Regulator And Lubricator 1/4" NPT - Miniature

Original price was: $176.99.Current price is: $99.99.

SKU: JET408801 Categories: Air Tools, Hoses and Fittings, Jet, Shop by Brand Tag: Jet

Streamlined service, designed for your convenience.
Free Shipping, Quality Goods
Prompt service, every time.
Your needs, our top priority.

Description
Reviews (0)

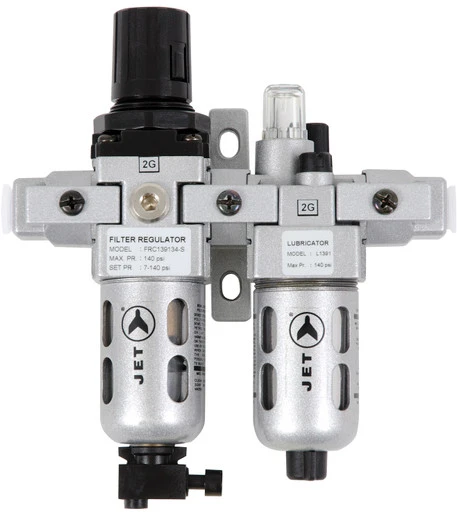

Space saving 2 piece modular filter, regulator combination and lubricator is by far the most popular air preparation unit

A combination of 2 Modular units – Filter, Regulator and Lubricator, connected together using a spacer block with a built-in wall mounting bracket and piping adaptors

Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life

Air regulator governs air flow to desired PSI air pressure

Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool

Maximum Working Air Pressure: 145 PSI

Ambient Temperature: 0-60°C (32-140°F)

Modular Mounting

Vertical Mounting

Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)

Max. Flow : 18 cfm (500 LPM)

Port Size : 1/4″

Pressure Gauge Port Size : 1/8″

Bowl Size (Filter) : 0.3 oz (9 ml)

Bowl Size (Lubricator) : 0.68 oz (20 ml)

Height : 6.69″ (170 mm)
